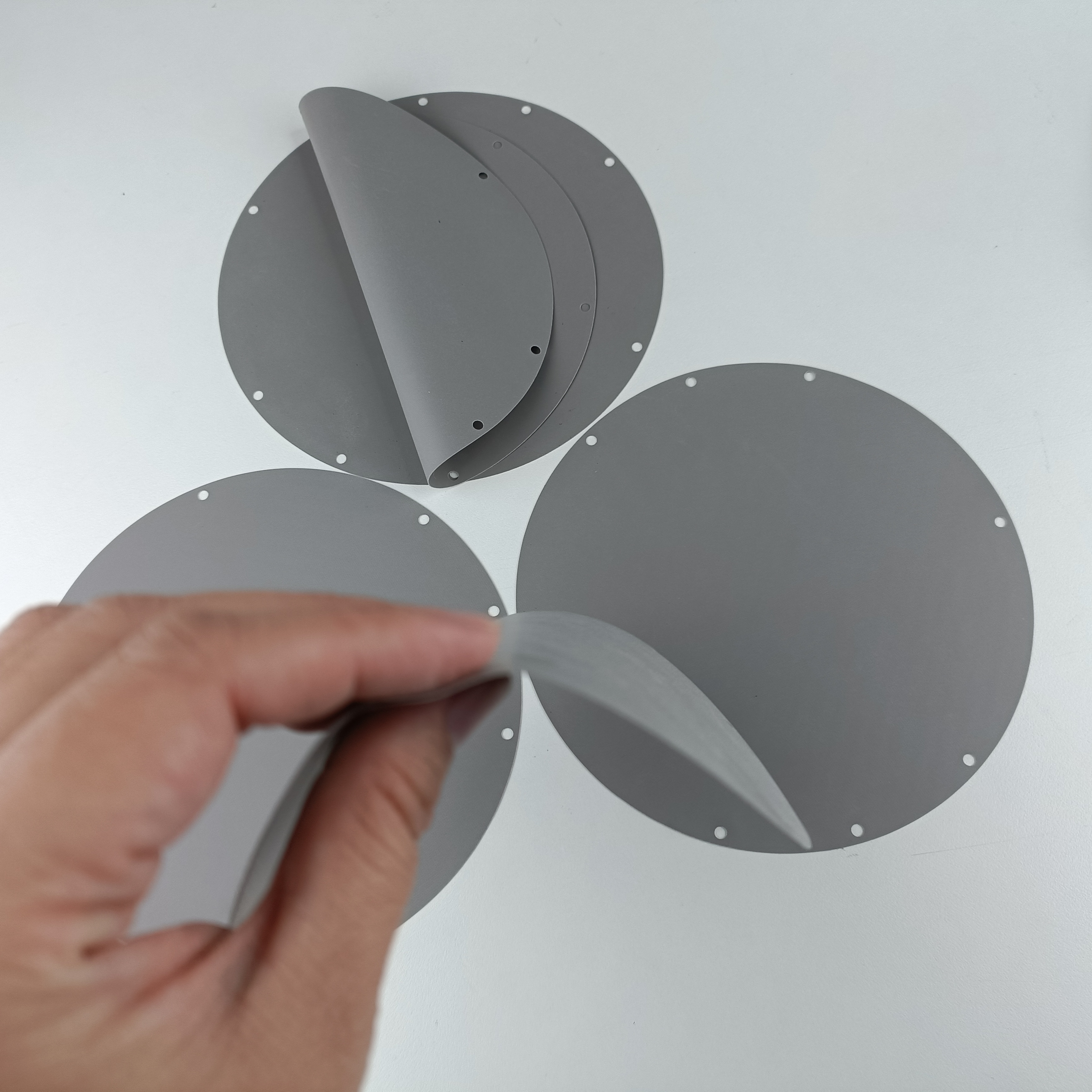

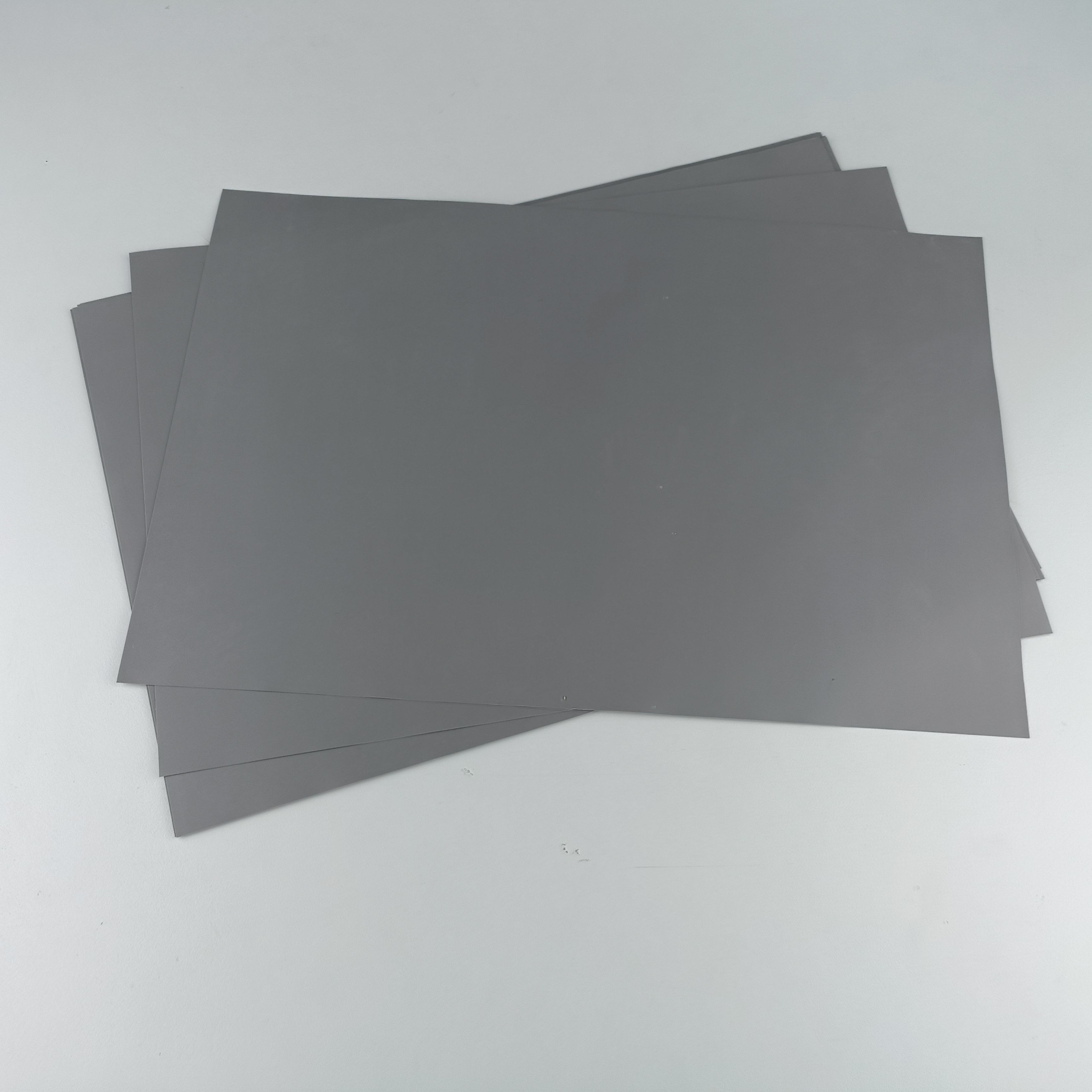

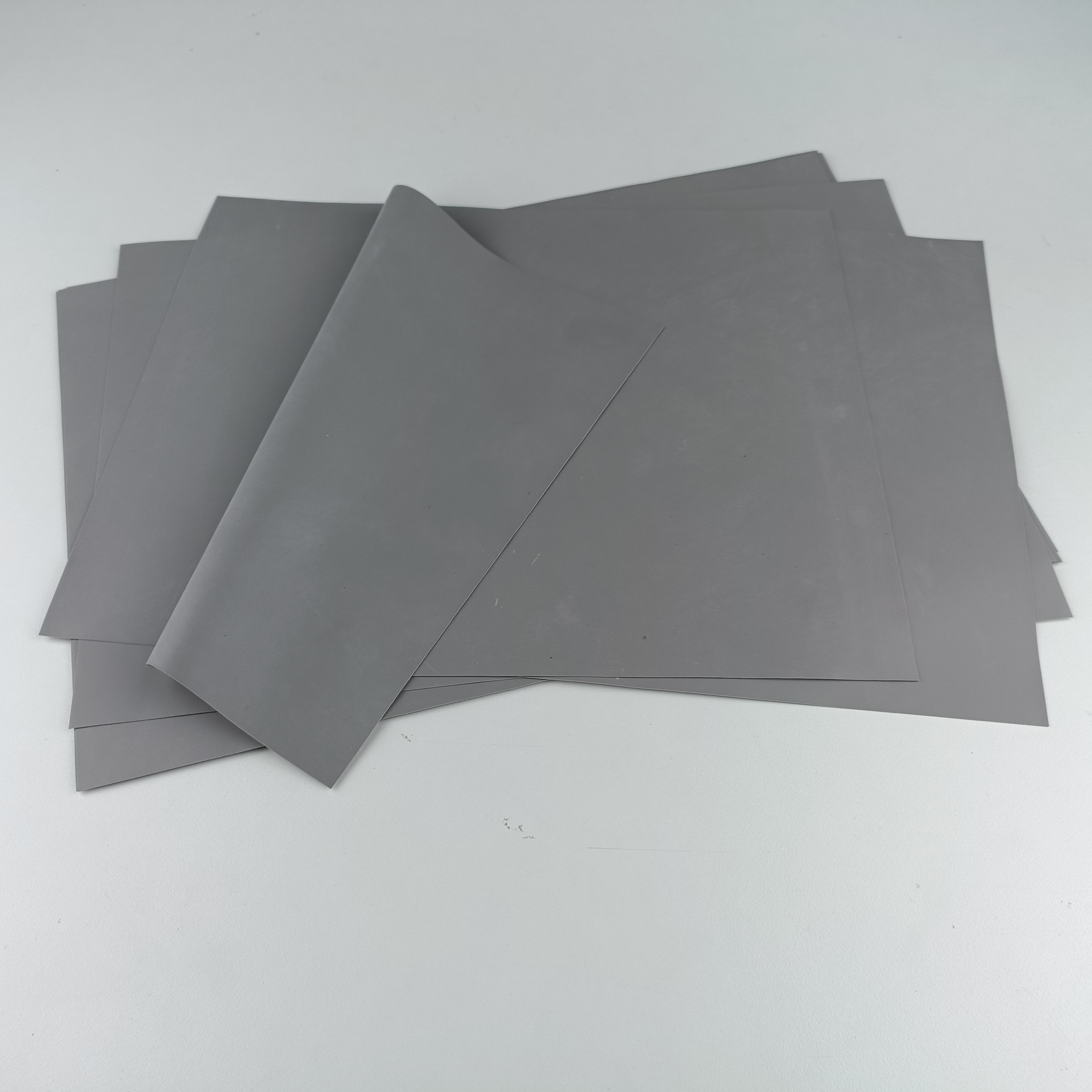

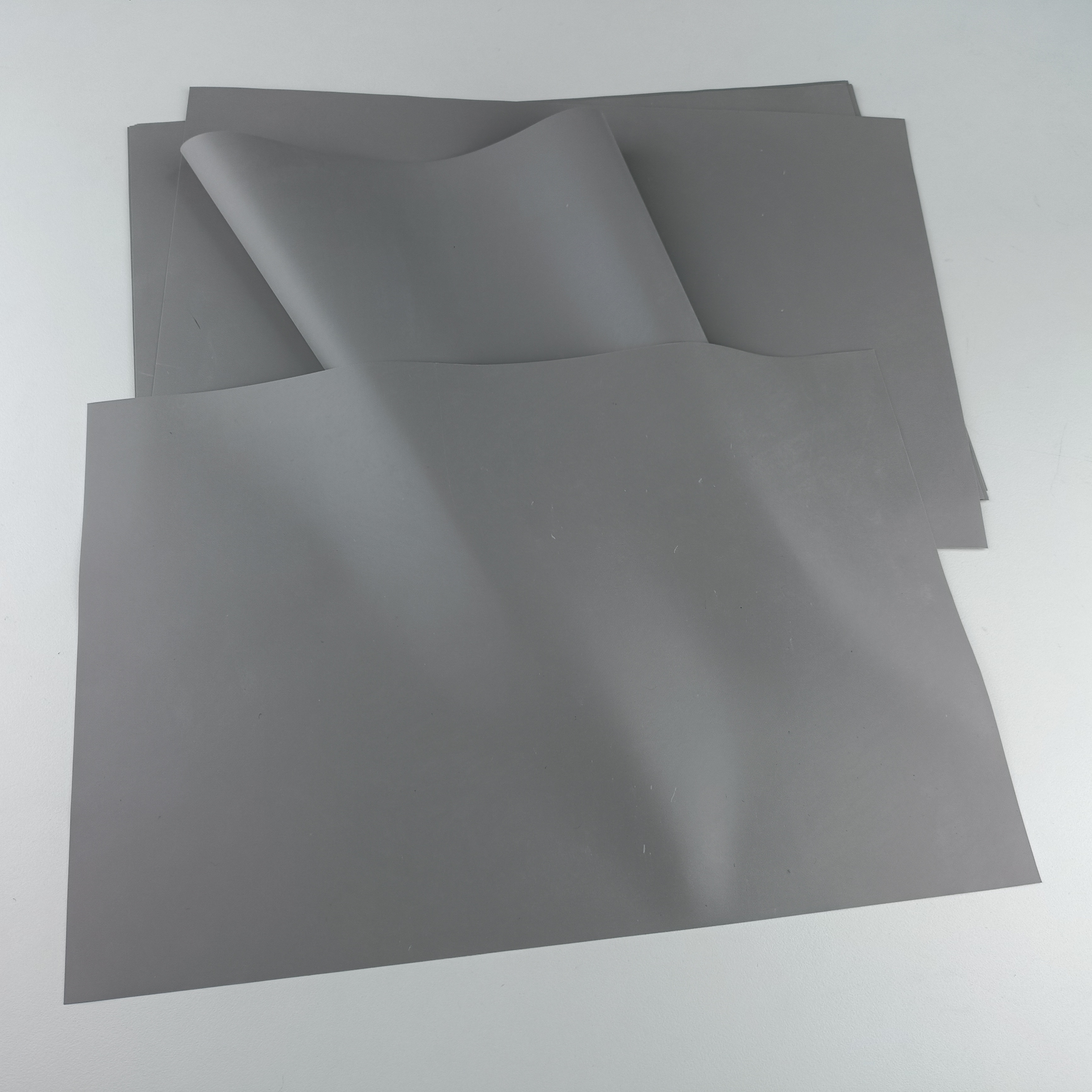

SC series silicon adhesive tape is a cloth product made of silica gel and glass fiber, insulating film or polyester film substrate through special process. Because of its excellent heat conduction, insulation and convenient assembly, it is widely used in electronic and electrical industries. When in use, thermal conductive silicon tape with different thicknesses is selected and cut according to the size of the heating interface and the gap height, and placed in the gap between the heating interface and its components to act as a thermal conductive medium.
Physical property parameter table:
Test item |
Method |
Unit | SC series value | |||
SC-23 | SC-30 | SC-45 | SC-80 | |||
Color | Visual | Pink and grey | Grey, pink and blue | grey | grey | |
Thickness | ASTM D374 | Mm | 0.23±0.03 | 0.3±0.03 | 0.45±0.03 | 0.8±0.03 |
Specific Gravity | ASTM D792 | g/cm3 | 1.7±0.1 | 1.7±0.1 | 1.7±0.1 | 1.7±0.1 |
Hardness | ASTM D2240 | Shore A | 85±5 | 85±5 | 85±5 | 85±5 |
Tensile Strength | ASTM D412 | kg/cm2 | >180 | >180 | >180 | >180 |
ASTM D412 | pa | 1.8*1011 | 1.8*1011 | 1.8*1011 | 1.8*1011 | |
Application Temperature | ℃ | -50~+200 | -50~+200 | -50~+200 | -50~+200 | |
Elongation | ASTM D412 | % | 3~8 | 3~8 | 3~8 | 3~8 |
Breakdown Voltage | ASTM D149 | KV | ≥3.0 | ≥4.0 | ≥5.0 | ≥8.0 |
Flammability Class | -94 | V-0 | V-0 | V-0 | V-0 | |
Thermal Conductivity | ASTM D5470 | w/m-k | 1.0 | 1.0 | 1.0 | 1.0 |
