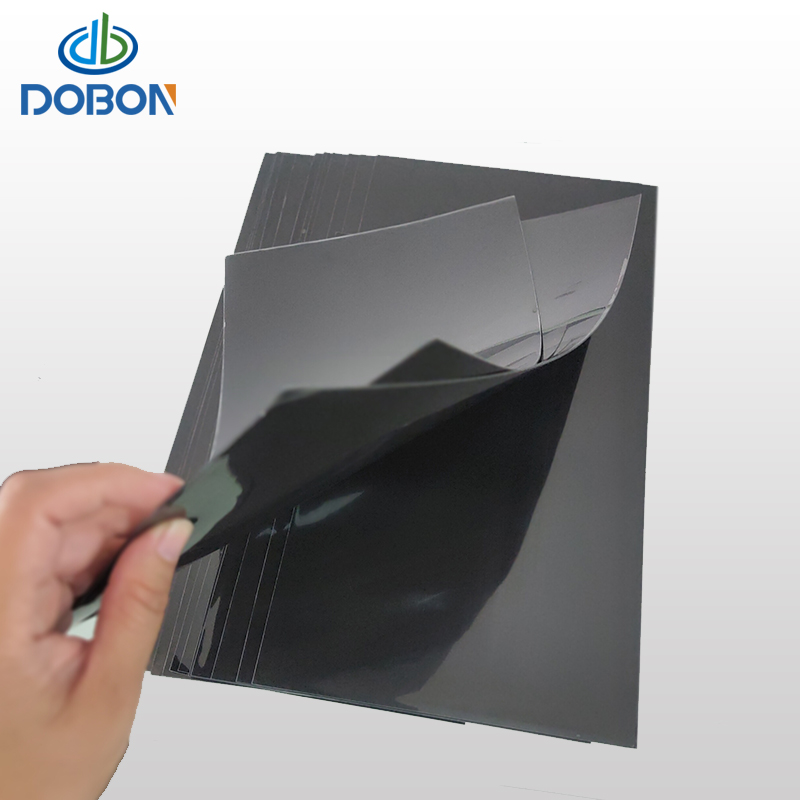

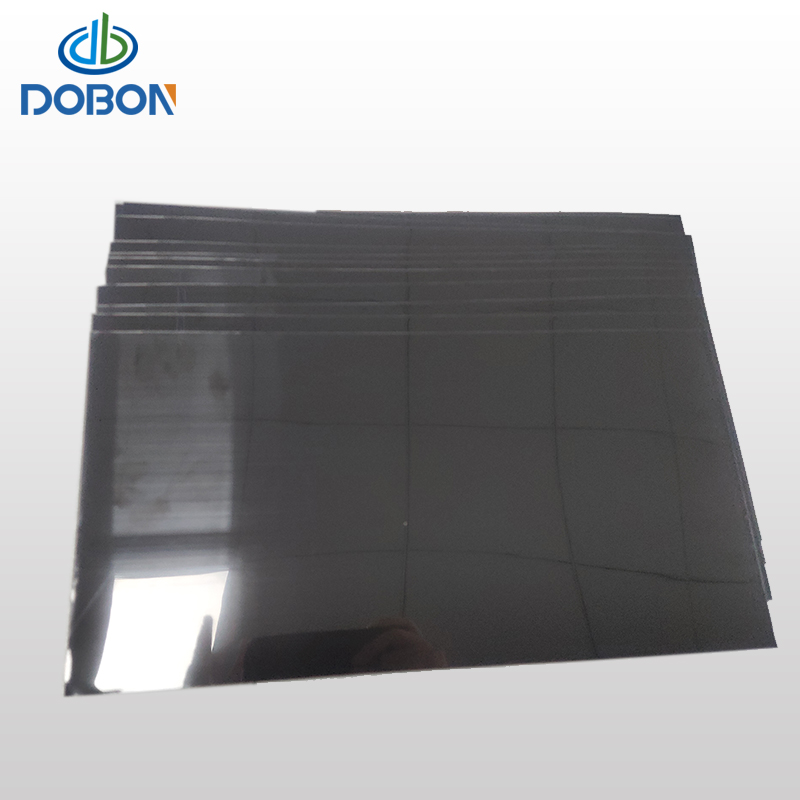

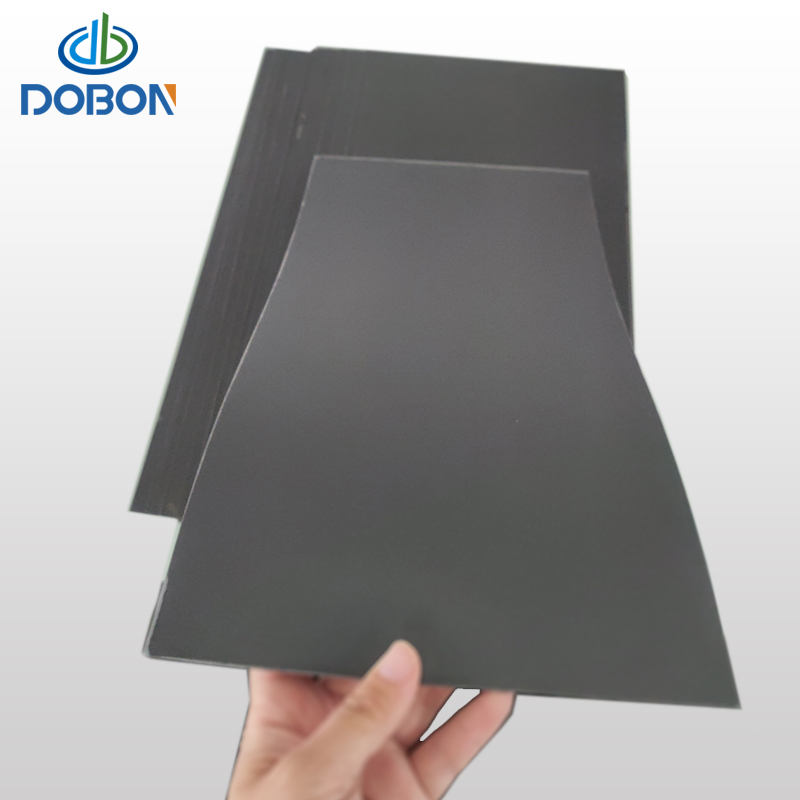

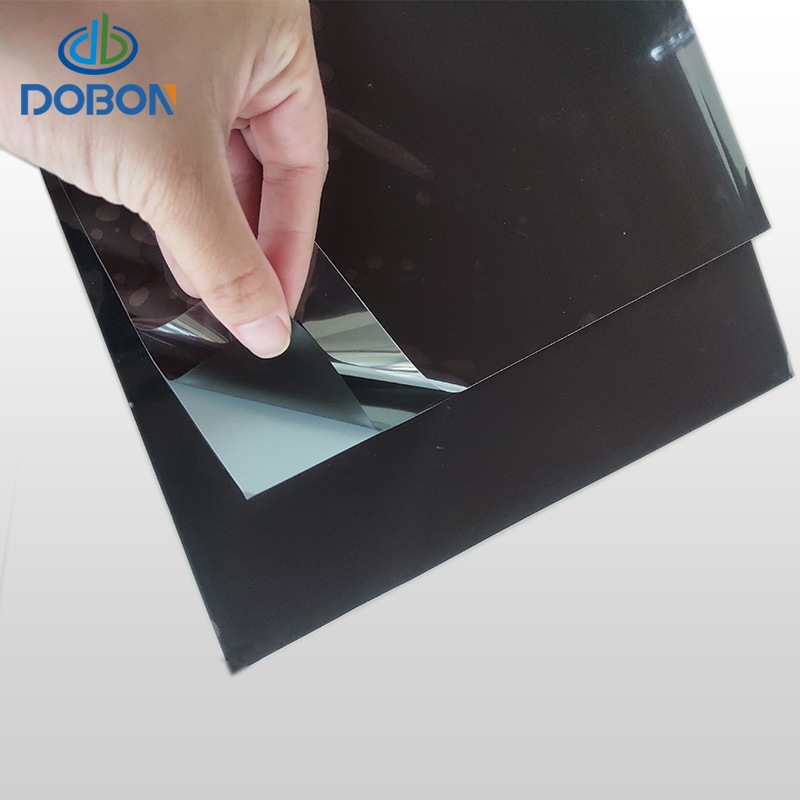

CPR wear-resistant thermal conductive silicone pad

CPR wear-resistant thermal conductive silicone pad is a kind of heat-conducting material with high tensile strength, which has high tensile strength, good tensile strength, wear resistance and anti-seismic resistance. This material is made into coiled materials of different thickness...

Online Enquiry Telephone
86-13360684696
PRODUCT INTRODUCTION / PRODUCT INTRODUCTION

 CPR wear--resistant thermal conductive silicone pad is a kind of heat-conducting material with high tensile strength, which has high tensile strength, good tensile strength, wear resistance and anti-seismic resistance. This material is made into coiled materials of different thickness, which is easy to be die-cut and processed into the required size. One side of the wear-resistant heat-conducting sheet can be used for frosting, anti-sliding and dustproof, and can be used to act as heat-conducting interface materials between frequently disassembled interfaces.


Product features:

1. Wear-resistant, supports multiple disassembly and reuse

2. Excellent thermal conductivity and insulation performance

3. Can make a frosted anti-skid dustproof side

4. The material has high tensile strength, can be folded without deformation, and has good assembly performance.

Test Item

Test Method

Unit

CPR100Value

Color

Visual


Matte black

Thickness

ASTM D374

mm

0.3~1.5mm

Specific Gravity

ASTM D792

g/cc

2.15±0.1

Hardness

ASTM D2240

Shore C

70

Tensile Strength

ASTM D412

(Mpa)

<2.0

Elongation at

break

ASTM D412

%

<100

Temperature Range

EN344

-40~150

Volume Resistivity

ASTM D257

Ω-CM

1.0*1014

Breakdown Voltage

ASTM D149

KV/mm

≥10

Flame Rating

UL-94


V-0

Dielectric constant

ASTM D150

@1MHz

4.3

Thermal Conductivity

ASTM D5470

w/m-k

1.0
